Fine-Mist Facial Sprayer · OEM / ODM / Private Label
KD88SA Portable High-Pressure Fine-Mist Facial Sprayer
A slim, rechargeable skincare applicator for beauty brands, importers, distributors and private-label programs. It atomizes compatible toner or water-based serum into a fine mist; it does not heat water or generate steam.
- High-pressure fine-mist atomization for facial hydration and serum application
- Detachable reservoir with simple press-and-hold operation
- USB-rechargeable, slim portable format
- Available for sample, bulk supply and OEM/ODM evaluation
Where the KD88SA Fits in the Market
Three B2B directions for evaluating the product within a portable skincare assortment.
Beauty & Personal-Care Brands
Suitable for brands adding a compact skincare applicator for toner or compatible water-based serum. Its role is product application and facial hydration support, not medical treatment or steam therapy.
Importers, Distributors & Retailers
A portable rechargeable format for beauty-device assortments, travel-care ranges, gift programs and retail portfolios that need a clear, demonstrable mist-application function.
E-commerce & Private-Label Programs
Supports online marketplaces and direct-to-consumer programs that require clear usage education, localized packaging and a defined sample-approval process before bulk purchasing.
Does the KD88SA fit your market?
Share your channel, price position and target quantity for a practical configuration review.
The Product Systems Behind the KD88SA
Understand the functional systems before evaluating a sample or planning a private-label version.

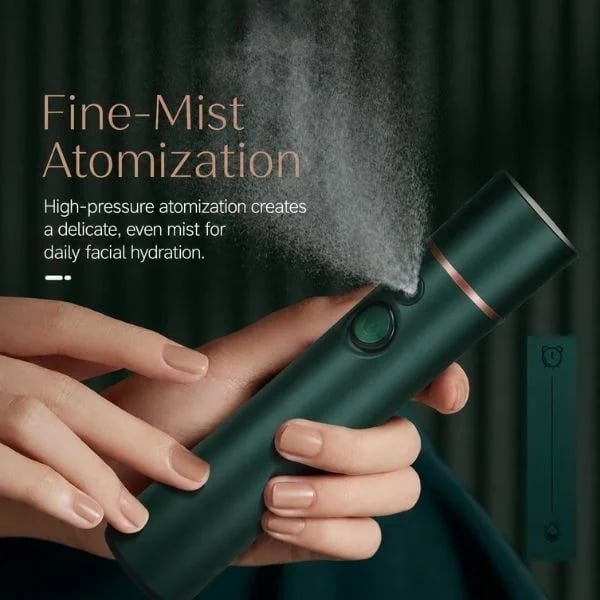

High-Pressure Fine-Mist Atomization
The atomization system is designed to distribute compatible water-based skincare liquid as a fine facial mist. Buyers should assess spray consistency, coverage and residue with the approved sample.

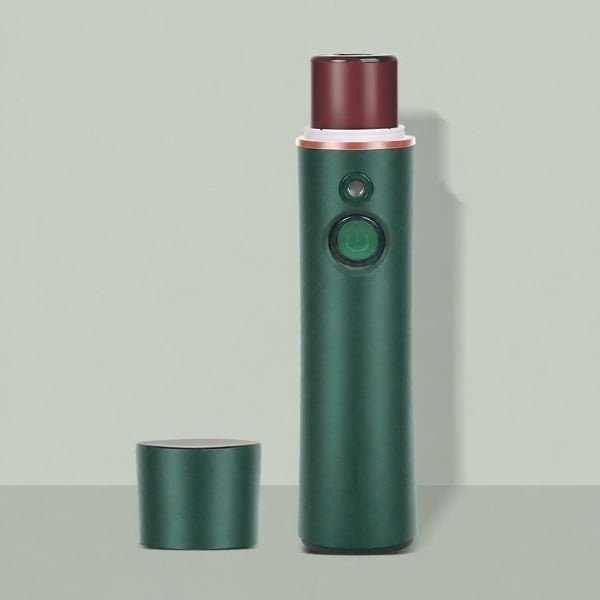

Detachable Reservoir & Liquid Path
The detachable reservoir supports filling and cleaning. Formula viscosity and material compatibility must be verified; oil-based, milky or high-viscosity formulas should not be assumed compatible.
Press-and-Hold One-Button Control
The unit sprays while the control is pressed and held. A pink indicator is used during operation, giving users a visible status cue without a multi-mode interface.
Rechargeable Portable Platform
The slim body uses a rechargeable lithium-polymer battery. Red and green indicators show charging and full-charge status;
How to Evaluate a KD88SA Sample
Use a consistent checklist to compare the sample with your target formula, market requirements and approved specification.

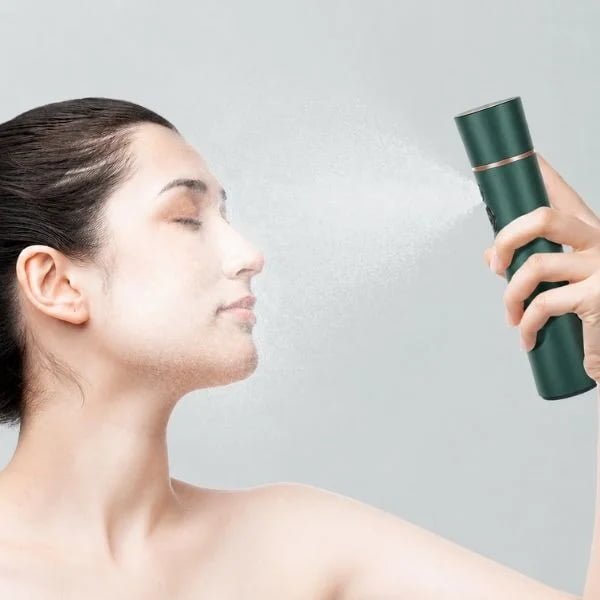

Mist Output & Distribution
Observe spray consistency, coverage and droplet distribution over repeated operation.
Reservoir Fit & Leakage Observation
Check filling, installation, cap fit and leakage around the reservoir and liquid path.
Formula Compatibility
Test the intended toner or water-based serum for flow, atomization and residue before approval.
Button Operation & Working Stability
Confirm press-and-hold response, operation indicator and stable output through the planned test cycle.
Electrical & Charging Check
Verify charging behavior, indicator changes and operation against the approved electrical specification.
Appearance, Dimensions & Accessories
Compare finish, assembly, labeling, dimensions and included items with the approved sample and order file.
Configure the KD88SA for Your Market
Move from the standard platform to a controlled private-label or OEM/ODM specification.
Standard Platform
Start with the confirmed atomization, detachable-reservoir, one-button and rechargeable platform. Approve functional performance against a physical sample before bulk production.
Private Label & OEM/ODM
Evaluate color, logo, packaging, label, barcode and instruction-manual localization. Availability, MOQ and cost depend on the approved commercial specification.
Engineering Review
Changes to structure, liquid path, battery, electronics, accessories or functional configuration require feasibility, tooling, validation and compliance review.
Share your target market, quantity and customization scope for a feasibility review.
KD88SA Specifications & Packaging
The product parameters below follow the KD88SA parameter sheet; missing logistics and document data are supplemented by the confirmed product records.
| Item | Confirmed Specification |
|---|---|
| Model | KD88SA |
| Product Name | Portable High-Pressure Fine-Mist Facial Sprayer |
| Main Functions | Fine-mist spraying of toner or water-based serum; facial hydration and serum application |
| Core Technology | High-pressure nano-fine atomization, slim portable body and detachable reservoir |
| Reservoir Capacity | 15 ml |
| Operating Mode | Press-and-hold one-button spray / 1 level |
| Power Supply | USB rechargeable |
| Working Voltage | DC 7.4 V |
| Charging Input | 5 V / 1 A |
| Rated Power | 5.0 W |
| Battery | 400 mAh lithium-polymer battery |
| Housing Material | PC / ABS |
| Product Dimensions | Approximately 180 × 41 × 41 mm |
| Net Weight | Approximately 175 g |
| Item | Standard Packing Information |
|---|---|
| Product SKU | 8D-88SAX00010 |
| EAN / GTIN | 6921150001065 |
| Standard Accessories | Main unit × 1; user manual × 1; USB charging cable × 1 |
| Packaging Type | Lid-and-base box |
| Color Box Size | 211 × 86 × 57 mm |
| Single-Package Gross Weight | Approximately 310 g |
| Quantity per Carton | 40 pieces |
| Outer Carton Size | 495 × 458 × 233 mm |
| Carton Gross Weight | Approximately 13.1 kg |
| Configuration / Evidence | Notes |
|---|---|
| Product Color | Confirm standard and custom color options for the approved version |
| Branding & Packaging | Logo, label, barcode, packaging and manual localization can be evaluated per project |
| Liquid Compatibility | Confirm with the intended toner or water-based serum using an approved sample |
| Operation Indicator | Pink light during spraying |
| Charging Indicator | Red while charging; green when fully charged |
| Quality Report | WPHE241892 — request a copy and confirm model/version coverage |
| FCC Test Report | HTT202302066FR — test report; applicability must be confirmed for the exact version and destination market |
| Utility Model Patent | CN 214320602 U; application no. 202022877761.9; leak-resistant sprayer |
| MOQ & Lead Time | Confirmed according to product version, customization scope, quantity and packaging |
Quality Checks, Supporting Documents & Related Models
Review the inspection scope and documentary evidence against the exact commercial version before order approval.
KD88SA Inspection Scope
Supporting Documents
Related Home Beauty Device Models
| Model | Product Direction | Selection Note |
|---|---|---|
| KD8086 | Dual-head multifunction facial beauty device | Feature-rich rechargeable platform combining spatula cleansing with EP, EMS, BEAT, SONIC, warming and vibration functions |
| KD8023 | Ultra-slim ultrasonic skin scrubber | Compact rechargeable spatula platform with ultrasonic cleansing, serum-infusion and EMS lifting modes |
| KD2328A | 2-in-1 hair and facial steamer | Configurable steam platform supporting hair and facial-care setups with ion/ozone functionality |
Common Sourcing Questions
Answers to common questions from brands, importers, distributors, retailers and OEM/ODM buyers evaluating the KD88SA.
What liquids can be used with the KD88SA?
The product is intended for toner or compatible water-based serum. Formula viscosity and material compatibility must be checked with an actual sample. Do not assume compatibility with oil-based products, emulsions, milks or high-viscosity formulas.
Can we evaluate a sample before bulk purchasing?
Yes. A sample can be arranged for a qualified commercial project. Confirm the sample version, liquid type, color, accessories and evaluation criteria before shipment.
Which customization options can be evaluated?
Color, logo, label, barcode, packaging and manual localization can be reviewed. Structural, electronic, battery, accessory or functional changes require engineering assessment.
What are the standard accessories and packaging?
The standard set includes one main unit, one user manual and one USB charging cable. The reference package is a lid-and-base box;
Which reports or patent records are available?
Confirmed records include quality report WPHE241892, FCC test report HTT202302066FR and utility model patent CN 214320602 U. Copies and applicability should be checked against the exact commercial version and market.
What information is needed for a quotation?
Please provide the destination market, estimated quantity, target liquid, branding scope, packaging requirements, required documents and preferred schedule. MOQ and lead time are confirmed per project.
